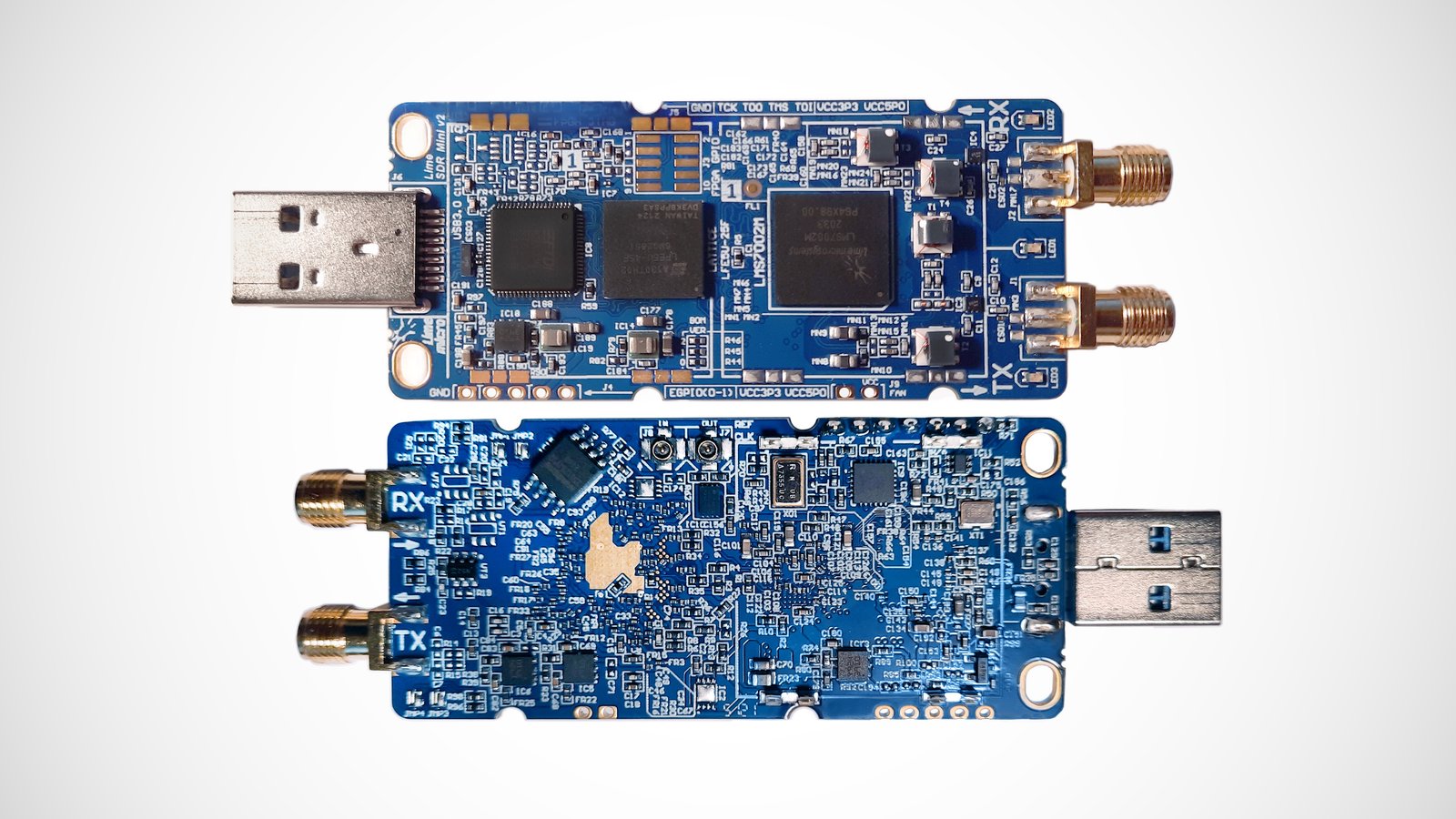

LimeSDR Mini 2.0 is an upgraded, drop-in replacement for LimeSDR Mini, a hardware platform for developing and prototyping high-performance and logic-intensive digital and RF designs that use an FPGA coupled with Lime Microsystems’ target=”_blank” href=”https://www.mouser.com/ProductDetail/Lime-Microsystems/LMS7002M?qs=sGAEpiMZZMv0NwlthflBi%2FiYxUFO2k1%2FUHXBXz1spEk%3D” target=”_blank” rel=”noreferrer noopener”>LMS7002M RF transceiver.
Goodbye, LimeSDR Mini
Since we first introduced target=”_blank” href=”https://www.crowdsupply.com/lime-micro/limesdr-mini” target=”_blank” rel=”noreferrer noopener”>LimeSDR Mini nearly five years ago, we’ve shipped tens of thousands of units to engineers around the world for use in everything from target=”_blank” href=”https://www.crowdsupply.com/lime-micro/limesdr-mini/updates/field-report-limesdr-mini-satellite-ground-station” target=”_blank” rel=”noreferrer noopener”>satellite ground stations to target=”_blank” href=”https://www.crowdsupply.com/lime-micro/limesdr-mini/updates/field-report-amateur-digital-tv-broadcast-with-limesdr-mini” target=”_blank” rel=”noreferrer noopener”>digital television. Whether you’re a hobbyist using LimeSDR Mini to learn about software defined radio, or a company integrating hundreds of LimeSDR Minis into your commercial product, we’ve been thrilled at the breadth and depth of LimeSDR Mini applications you’ve come up with. Which is why it’s been especially difficult to watch all of this come to a grinding halt over the last year due to the global electronics and chip shortage.
Hello, LimeSDR Mini 2.0
Rather than wait indefinitely and hope the supply chain rewinds to a time we’re unlikely to see again soon, we went back to the drawing board. The result is LimeSDR Mini 2.0, a software defined radio with the same form factor as the original LimeSDR Mini, the same LMS7002 RF transceiver, but a new FPGA – the Lattice ECP5. Not only is the ECP5 more readily available than the Intel MAX10 FPGA used in the previous design, but it has an extensive set of open source tools and a great community of developers.
Comparisons
| LimeSDR Mini 2.0 | LimeSDR Mini | LimeSDR | HackRF One | Ettus B200 | Ettus B210 | BladeRF x40 | RTL-SDR | |
|---|---|---|---|---|---|---|---|---|
| Frequency Range | 10 MHz – 3.5 GHz | 10 MHz – 3.5 GHz | 100 kHz – 3.8 GHz | 1 MHz – 6 GHz | 70 MHz – 6 GHz | 70 MHz – 6 GHz | 300 MHz – 3.8 GHz | 22 MHz – 2.2 GHz |
| RF Bandwidth | 40 MHz | 40 MHz | 61.44 MHz | 20 MHz | 61.44 MHz | 61.44 MHz | 40 MHz | 3.2 MHz |
| Sample Depth | 12 bits | 12 bits | 12 bits | 8 bits | 12 bits | 12 bits | 12 bits | 8 bits |
| Sample Rate | 30.72 MSPS | 30.72 MSPS | 61.44 MSPS | 20 MSPS | 61.44 MSPS | 61.44 MSPS | 40 MSPS | 3.2 MSPS |
| TX Channels | 1 | 1 | 2 | 1 | 1 | 2 | 1 | 0 |
| RX Channels | 1 | 1 | 2 | 1 | 1 | 2 | 1 | 1 |
| Duplex | Full | Full | Full | Half | Full | Full | Full | N/A |
| Interface | USB 3.0 | USB 3.0 | USB 3.0 | USB 2.0 | USB 3.0 | USB 3.0 | USB 3.0 | USB 2.0 |
| Programmable Logic Gates | 44K | 16K | 40k | 64 macrocell CPLD | 75k | 100k | 40k (115k avail) | N/A |
| Chipset | LMS7002M | LMS7002M | LMS7002M | MAX5864, MAX2837, RFFC5072 | AD9364 | AD9361 | LMS6002M | RTL2832U |
| Open Source | Full | Full | Full | Full | Schematic, Firmware | Schematic, Firmware | Schematic, Firmware | No |
| Oscillator Precision | ±1 ppm initial, ±4 ppm stable | ±1 ppm initial, ±4 ppm stable | ±1 ppm initial, ±4 ppm stable | ±20 ppm | ±2 ppm | ±2 ppm | ±1 ppm | ? |
| Transmit Power | max 10 dBm (depending on freq.) | max 10 dBm (depending on freq.) | max 10 dBm (depending on freq.) | -10 dBm+ (15 dBm @ 2.4 GHz) | 10 dBm+ | 10 dBm+ | 6 dBm | N/A |
Open Source
We pride ourselves on the openness of LimeSDR Mini 2.0. Before going to production, we will release the following source files:
- Board schematics
- Board layout
- Manufacturing files (e.g., Gerbers, drill, and part placement files)
- FPGA gateware
- USB 3.0 firmware
- Host software
- Documentation
- Toolchain configuration
Interested in This Project?
You can sign up to be notified when this campaign launches, and to get any other useful updates, right at the top of this page. We work hard to only send out useful information and you can unsubscribe at any time.
See More:target=”_blank” href=”https://www.crowdsupply.com/lime-micro/limesdr-mini-2-0″ target=”_blank” rel=”noreferrer noopener”>Link
